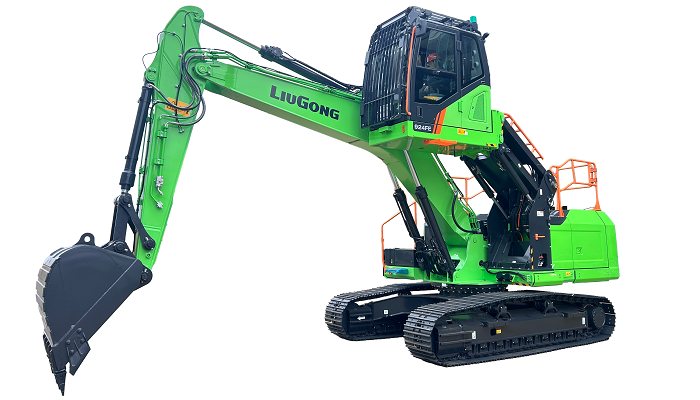

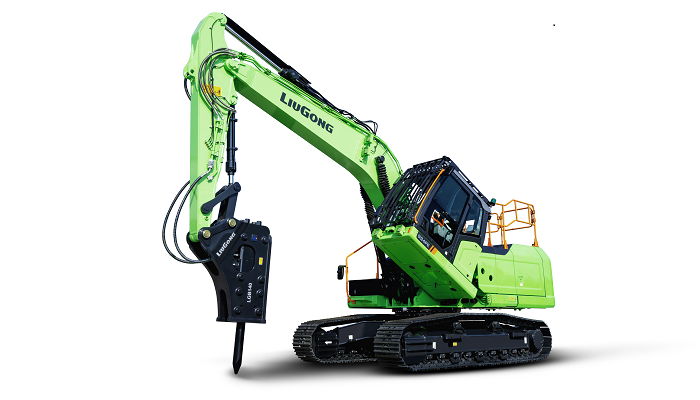

The 924FE electric excavator is a special tunnel electric excavator launched by Liugong on the new generation of electric excavator technology platform, combined with the particularness of tunnel construction, such as many rocks, high strength, diverse construction, environmental hazards, low oxygen content, and emission limits. The whole machine adopts full electronic control hydraulic system, internationally renowned three-power matching adjustment, new cockpit, comprehensive strengthening, comprehensive protection design, etc., to meet the tunnel construction of high strength, multi-operation, low emission, high comfort operation needs.
Operating Weight:
24,900 kg
Rated Power:
165 kW
Bucket Capacity:
1 m³
Product Features
924FE
924FE
924FE
924FE
Specifications
| Operating Weight | 24,900 kg |
| Rated Storage Capacity | 423 kWh |
| Rated Power | 165 kW |
| Bucket Capacity | 1 m³ |
| Drawbar Pull | 200 kN |
| Bucket Digging Force | 165 kN |
| Arm Digging Force | 105 kN |
| Shipping Length | 9,910 mm |
| Shipping Height | 3,428 mm |
| Undercarriage Width | 3,090 mm |
| Download Brochure |
| Operating Weight | 28,100 kg |
| Rated Storage Capacity | 423 kWh |
| Rated Power | 165 kW |
| Bucket Capacity | 1 m³ |
| Drawbar Pull | 200 kN |
| Bucket Digging Force | 165 kN |
| Arm Digging Force | 105 kN |
| Max. Cab Lifting Height | 2.5 m |
| Shipping Length | 9,910 mm |
| Shipping Height | 3,428 mm |
| Undercarriage Width | 3,090 mm |
| Download Brochure |
| Operating Weight | 26,500 kg |
| Rated Storage Capacity | 423 kWh |
| Rated Power | 165 kW |
| Bucket Capacity | 1 m³ |
| Drawbar Pull | 200 kN |
| Bucket Digging Force | 165 kN |
| Arm Digging Force | 105 kN |
| Cab Tilt Angle | 0 ~ 30° |
| Shipping Length | 9,910 mm |
| Shipping Height | 3,428 mm |
| Undercarriage Width | 3,090 mm |
